- Rain Curtain Nozzles for even distribution.
- Gear-driven rotor head
- Quick Adjustment with slip clutch mechanism.
- Flow and arc adjustment with a flat head screwdriver.
- Short to mid-range coverage.
- 3/4" Inlet.

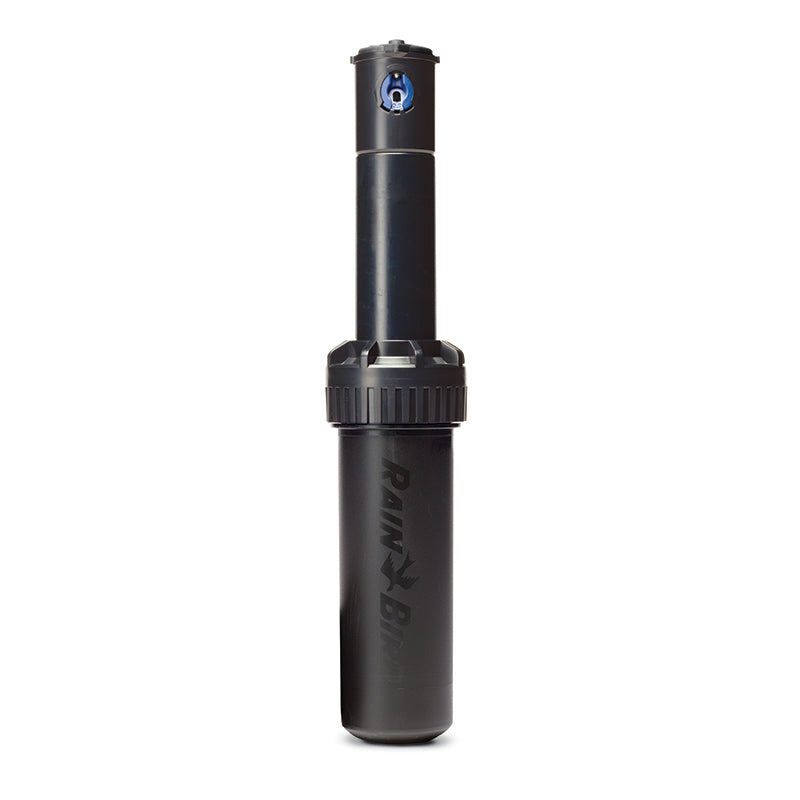

The Rain Bird 5004 Pop Up Sprinkler is a high-performance sprinkler designed for home and light commercial use. Its rugged design with a stainless steel spring and triple-bladed multi-function wiper blades ensure long life and reliability even in gritty environments. A single jet operating between 40-360 degree arc ensures your lawn gets the total coverage while the interchangeable nozzles make it easy to adjust throw and angle to your needs.
Product Features

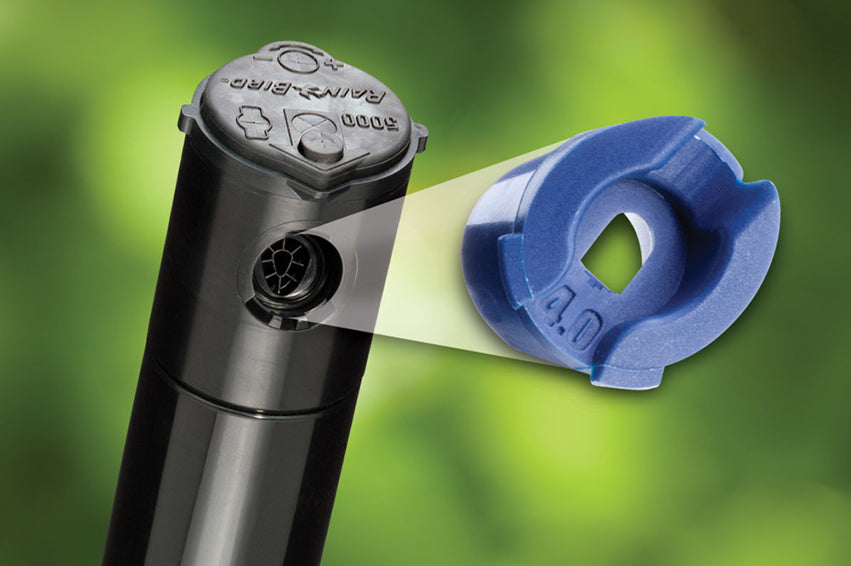

- Rain Curtain Nozzles standard on all 5000 Series Rotors
- Large water droplets for greater wind resistance
- Effective close-in watering
- Even distribution over the entire radius

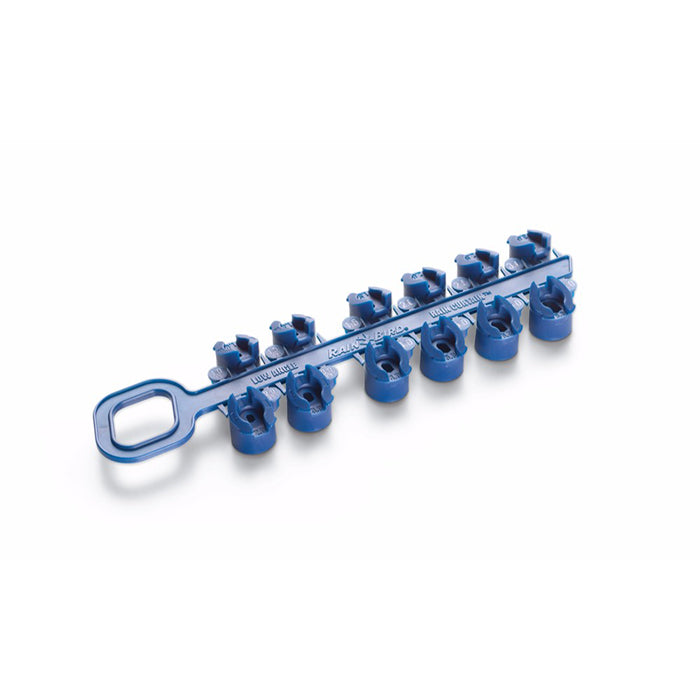

- Tree of nozzles including four low angles (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 25' to 50' (7.6m to 15.2m) distance of throw
- Self-aligning nozzles
- Slip clutch mechanism for quick adjustment on installation
- Faster maintenance with a new self-cleaning arc adjustment screw
- The 5000 Plus features a flow shut-off device to stop the flow of water to a particular head while the system is still in operation
- Top-adjust arc adjustment requiring only a flathead screwdriver
- Radius adjustment screw allows up to 25% radius reduction without changing nozzles
- Award-winning MPR nozzle set simplifies design and installation by providing matched precipitation from 25' to 35' (7.6 to 10.7m)

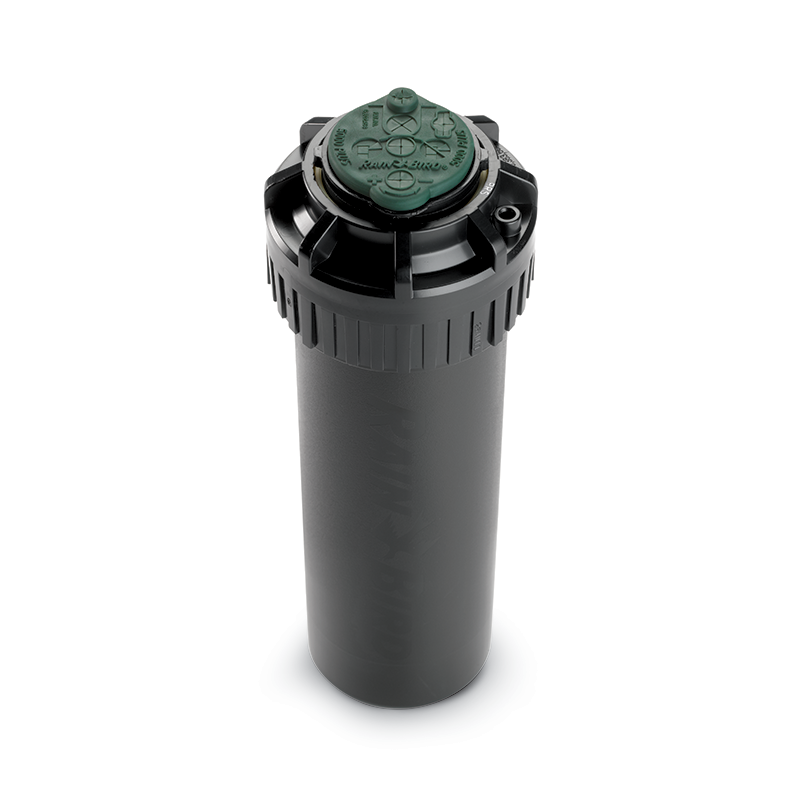

- Standard rubber cover for extra protection. 5000 Plus Series features a green cover while the 5000 Series features a black cover
- 40-360° arc rotation and reversing full-circle rotation in one. (A non-reversing full-circle only unit is also available)
- True 4" (10 cm) pop-up (measured from the cover to the nozzle)
- Heavy-duty cover assembly for extra durability in residential or commercial applications
- Heavy-duty retract spring assures positive pop-down
- Pressure-activated triple-blade multi-function wiper seal protects the internals from debris and assures positive pop-up and retraction
- Additional O-rings and seals for extra protection in "gritty" water
- Five-year trade warranty.
